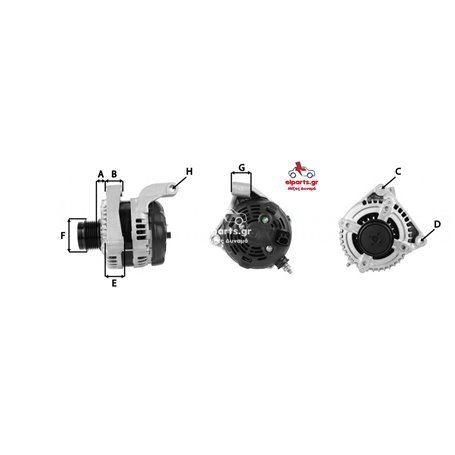

| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 22 | 30 | Ø11 | Ø11 | 30 | 57 | 30 | Ø11 |
Suited for:
- ManufacturerModelEngineEngine codeSeriesModel typeType descriptionYearTechnical info
- CHRYSLERGrand Voyager3.3 (3301ccm) PetrolEGARGHH53/RGHY532000 - 2007AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
- CHRYSLERGrand Voyager3.3 (3301ccm) PetrolEGAAWDRGHC53/RGHK532000 - 2007AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
- CHRYSLERTown & Country3.3 (3301ccm) PetrolEGMSYH53/SYM532000 - 2007AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
- CHRYSLERVoyager3.3 (3301ccm) PetrolEGARGHH52/RGHY522000 - 2007AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
- CHRYSLERVoyager3.3 (3301ccm) PetrolEGAAWDRGHC52/RGHK522000 - 2007AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
- DODGECaravan3.8 (3778ccm) PetrolEGHRS2001 - 2006AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
- DODGECaravan3.8 (3778ccm) PetrolEGHAWDRS2001 - 2006AMP: 140
Volt: for vehicles with 12V main current
Pulley Type: with freewheel belt pulley
Pulley Dia.: 57,0mm
Pulley Grooves: 6
A0G90
27-6672
- CarCode
- 1520
- model
- CHRYSLER
DODGE - Συμβατότητα
- 421000-0011
421000-0012
421000-0013
421000-0221
421000-0222
421000-0223
421000-0225
04868431AB
04868431AC
04868431AD
04868431AF
04868431AG
Non accepted cores - ΤΥΠΟΣ
- ΔΥΝΑΜΟ
